Sometime ago my head was so stuffed with speculations about earthworks and so intent on pinning down previously undiscovered archaeology that I might have inadvertently, just a little bit, perhaps, have misinterpreted some Victorian herring-bone drainage cuts at Rossall School for mediaeval plough lines.
Look, it could have happened to anybody! Nobody’s perfect (although, of course, I come about as close as it’s possible for one human being to get).
Anyhow, because of that, I decided to dig out some old stuff that I’d written and drawn up for the museum ages and ages ago; a sort of refresher course so that I wouldn’t make the same mistake again.
And now it’s your turn to suffer. (I don’t see why I should be the only one.)
So, in order to turn the boggy Fylde landscape from unusable marsh into something more arable local farmers have been draining their fields since mediaeval times. It wasn’t until the mass production of tile pipes in the 1840’s, however, that field drainage really took off.
MAIN DRAINS
(Can you see what I’ve done there? I’ve added a subheading and turned it into a fantastically hilarious pun, like they do in the newspapers. You’ll thank me for this, one day, I’m sure of it.)

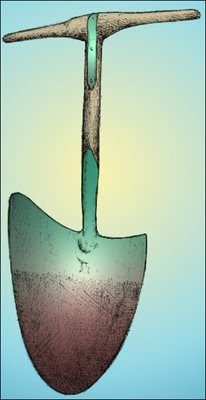

The first job that needed to be done in order to drain a field was to dig a large ditch along one of its sides. This ditch would channel the water to a nearby river or stream. The ditch was excavated using an enormous ‘Ditch Cutting Spade’ (such as the one illustrated below) that was specially designed for the task. Presumably it required a bloody big sod to operate it as well.
Once dug, to prevent the ditch or ‘dyke’ from silting up again, regular maintenance was required. ‘Pon Scoops’ or ‘Pan Scoops’ (see below – I’ve gone to a lot of trouble here to make this informative and interesting at the same time, so I hope you appreciate it) were used to fish unwanted blockages from the channels (watch it!) allowing the water to drain freely away. Looks like the sort of spoon you’d expect Dawn French to eat her breakfast with really, doesn’t it?
PIPE DREAMS
(See…I’ve done it again. Eat your hearts out Daily Mirror staff!)
With the ditches in place the next step was to channel the water into them from the rest of the field…er…obviously. In order to accomplish this, pipe-layers would first dig into the soil using a ‘Long Mouth’ spade such as the one below as demonstrated by my old departed mate Neil Thompson. (Or an illustration of him, at any rate.)
These spades were designed to dig a trench just wide enough to accommodate the pipes, which explains their weird shape. They varied in size according to the width of the pipes that needed to be laid.
Spades with long thin blades (like the one above) were known as ‘Topping Spades’ whilst the shorter, fatter blades were called ‘Bottoming Spades’. (Insert your innuendo here, but keep it to yourselves, eh?)
Once the trench had been dug the ‘Levelling Spade’ or ‘Drag’, shown below, was used to even up the base.
This odd shaped tool also removed any stones and gravel from the trench floor. The technique was known as ‘Crumbing Up’. (Don’t ask, because I don’t know why. I just get told these things. After a while you learn to stop asking stupid questions in the hopes that it’ll all be over soon.)
Speaking of which, it’s probably time for a few days break. (I reckon we deserve it after that.) Don’t forget to call back for the second and concluding part of this article. It’s bound to improve. No seriously…
